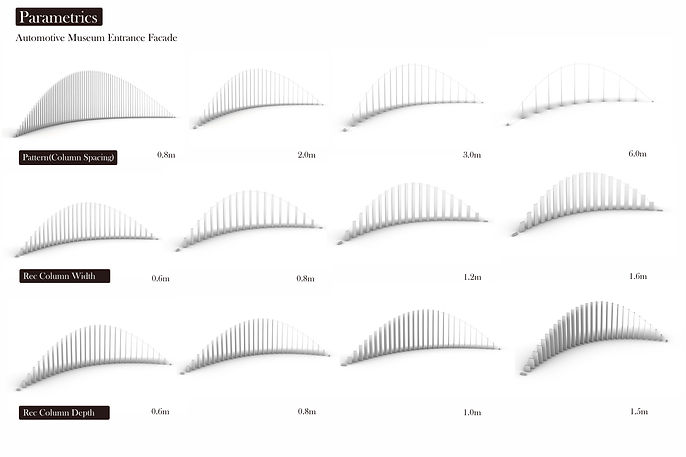

Parametrics 🎹

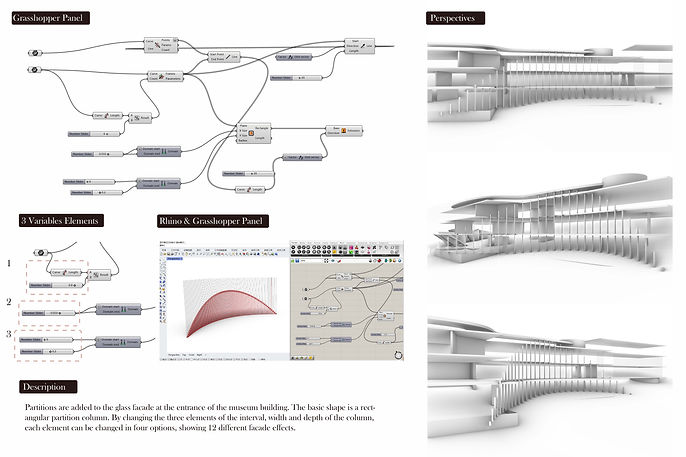

GH Steps

1 Insert Two Curves first

2 Identify the length of the line below, determine the interval distance, make equal divisions, and get the result

Use curve frames to divide them equally

3 Create a rectangle at each point, and XY determines the size of the rectangle

4 Make an upward straight line. Using Line SDL from the lower curve, and generate an intersection with the upper curve, set the Z direction, and the length is 20

5 Use Curve|Line to generate the intersection with the above curve, identify each points on the upper curve

6 Connect the following curve and the identified intersection to the Line, and get the length of each line

7 Use rectangles to extrude in the Z direction according to the different lengths of each line to get these grids.
